BFT DEIMOS 600 KG Sliding Gate Motor in UAE

BFT DEIMOS 600 KG Sliding Gate Motor in UAE

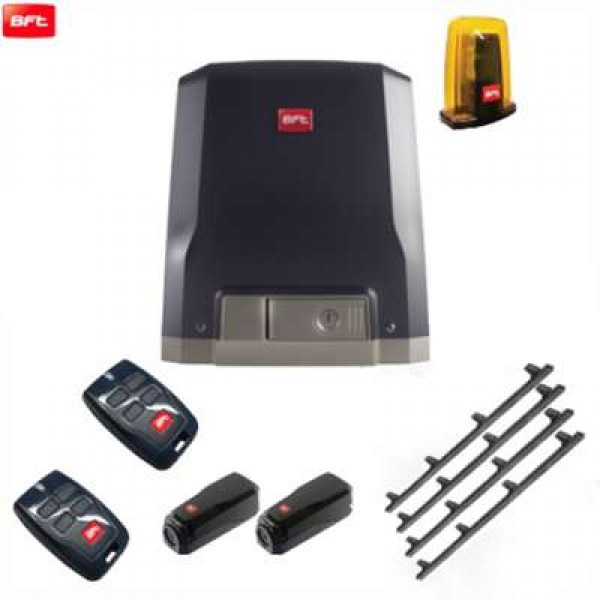

BFT DEIMOS 600 Sliding Gate Motor

• BFT DEIMOS 600
• Refence P925224 00003
• Part number 2611590
• Operator 24 V for sliding gates up to 360 kg in weight.
• Leaf speed 16 m/min.

Technologies:

• The thrust required to operate safely.
• A smart torque management system
• based on the microprocessor technology of BFT control units.
• Acquiring data from several indicators,
• it updates the level of thrust required to perform the operation.
• D-Track also facilitates the installer in providing for the certifications required by law.
• Conventional control units do not "read"
• the exact position of the gate and consequently apply constant thrust levels,
• without ensuring stable sensitivity during the opening and closing operations.
• BFT control devices record the slightest variation in the gate or door force,
• for example due to differences in temperature or wear,
• constantly supplying the optimum torque to the motor.
• A conventional control unit could not detect these thrust variations,
• which would result in it indicating the presence of non-existent obstacles.
• The BFT system thus guarantees the maximum
• safety and perfect functioning of the equipment,
• no matter what the climactic and temperature
• conditions and degree of mechanical wear.

Technical Data Sheets:

• Pinion module : 4
• Slowdown : Yes
• Control unit : HAMAL
• Locking : Mechanical
• Board power supply : 230 V
• Release : Lever-operated with personal key
• Impact reaction : D-Track
• Power consumption : 70 W
• Frequency of use : intensive
• Max. door/gate weight : 600 kg
• Protection rating : IP24
• Gate panel speed : 16 m/min
• Environmental conditions : -20 ÷ 55 °C
• Type of limit switch : Electromechanical
• Interconnectivity : no
• Motor voltage : 24 V
