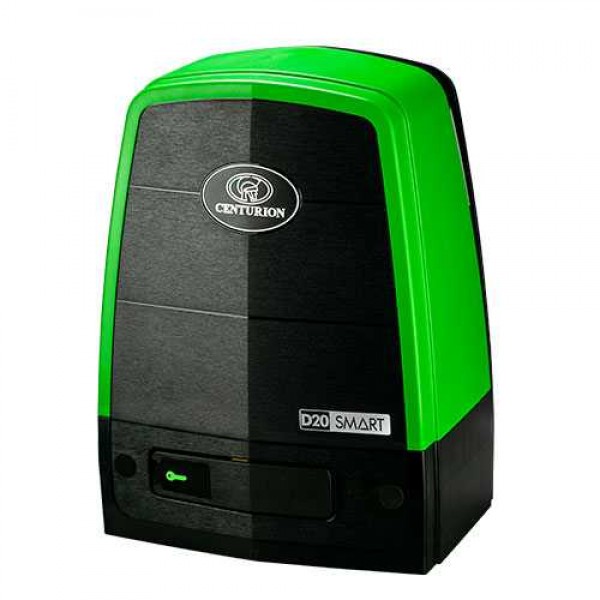

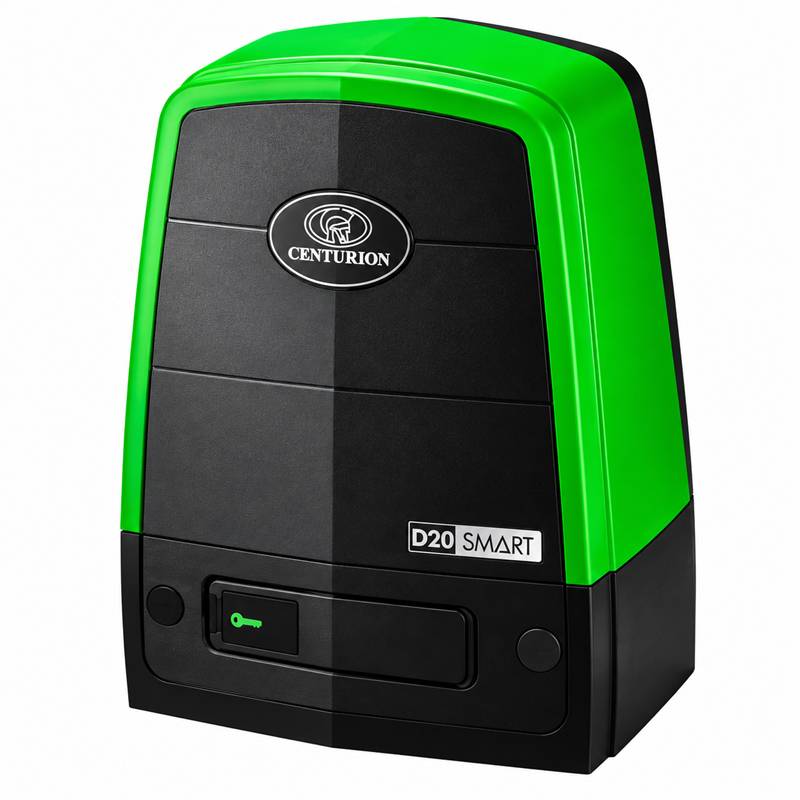

Centurion D20 Smart 2000 Kg Sliding Gate Motor:

Main features:

• Strong enough to move a 2t gate
• Easy drop-in replacement for existing A10 sites
• SMART technology makes the D20 SMART as intelligent as it’s solid
• Installer-friendly design with easy access to mounting hardware,
• optimised cable routing and a dedicated accessory tray
• Smooth and strong
• Alert and agile highly reliable Hall Effect technology
• keeps track of the gate position at all times,
• and ensures pin-point stopping

Technical Specifications:

• Input voltage : 90V - 240V AC +/-10% @ 50Hz1
• Current consumption (Mains) : 250mA
• Battery charger current output : 1.8A @ 27.4V +/-1%
• Maximum number of operations per day : 750.2, 5
• Duty cycle Mains present2, 3 : 45%
• Motor voltage : 24V DC
• Motor power supply : Battery-driven (Standard Capacity - 2x 7.2Ah)3
• Current consumption (motor at rated load) : 9A
• Input / Output sink currents (Max accessory current draw)
• I/O 1-4 : 100mA (12/24V)
• I/O 5 and 6 : 3A (12/24V) 10sec Pulse
• Motor push force starting : 52kgf
• Motor push force rated : 39kgf
• Gate mass maximum : 2000kg
• Gate length maximum : 25m
• Gate speed (varies with load)2, 5 : Up to 18m/min3
• Manual Override : Lockable lever with key release
• Drive Pinion : 13T Module 4
• Operations in standby with 2x 7.2Ah batteries
• Power Saving (15m/min 20kgf) | Normal (18m/min 20kgf)
• Half day2, 3, 4 : 101 | 55
• Full day2, 3, 4 : 80 | 45
• Collision Sensing : Electronic
• Operating temperature range : -15°C to +50°C
• Onboard receiver type : CENTURION rolling code (Keeloq encryption) multichannel
• Receiver code storage capacity 1500 Remotes6
• Receiver frequency : 433.92MHz
• Degree of protection : IP54
• Mass of unit packed (with standard kit, but excl. rack and battery) : 13Kg
• Packaging dimensions (with standard kit, but excl. rack and battery)
• 350mm wide x 282mm deep x 470mm high
