FAAC 740D Gates Control Board in UAE

FAAC 740D Gates Control Board in Dubai UAE

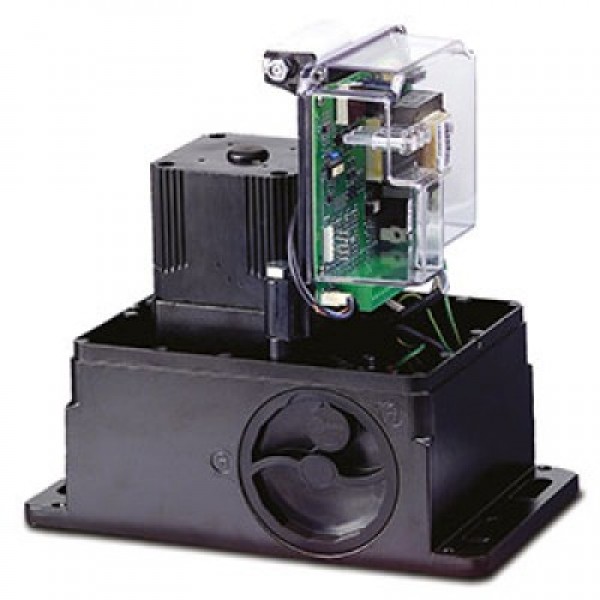

FAAC 740D Sliding Motor Control Board:

Sliding gate control board for 230V:

• FAAC 740 Sliding Gate Motor.
• FAAC 741 Sliding Gate Motor.

Technical Specifications:

• Type of power supply : Separated
• Power supply voltage : 220-240V~ 50/60 Hz
• Max. power : 10 W
• Motor max power : 1.000 W
• Max. accessories load : 0.5 A
• Programming : 3 keys (+, -, F)
• Status signalling : Via display
• Operating logic : Automatic, Automatic Step by Step
• Semi-automatic Step by Step, Safety,
• Semi-automatic B, ”Dead man” C/ B/C mixed logic
• Programmable functions :
• Function logics,
• Pause time,
• Thrust power,
• Opening/Closing direction,
• Torque at initial thrust,
• Brake, Failsafe, Pre-flashing,
• Indicator light/Timed output
• Electric lock at opening and closing,
• Logic for safety devices at opening and closing,
• Encoder / Anti-crushing sensitivity,
• Decelerations
• Partial opening time
• Work time, Service request
• Cycle count
• Work time : Programmable (from 0 to 4 min)
• Pause time : Programmable (from 0 to 4 min)
• Thrust power : Adjustable on 50 levels

Terminal board Inputs:

• Open, Partial open,
• Safety in opening,
• Safety in closing,
• Stop, Edge
• Power + Earth
• Opening and closing limit switches
• motor condenser
• Terminal board outputs
• Flashing light
• Motors, Power accessories 24V  ,
• Indicator Light 24V
• Timed output
• Electric lock control
• Traffic light, Failsafe
• Rapid connector : 5-pin board insertion
• Protection Fuses : 2
• Operating ambient temperature : -20°C ÷ +55°C
