SOMMER TWIST 200 Swing Gate Motor in UAE

SOMMER TWIST 200 Swing Gate Opener:

• twist 200 E set 2-leaf
• twist 200 E set 2-leaf 868,95MHz.
• SOMMER version anthracite power plug Schuko incl. 1x 4019V000.
• Article No. S11521-00001
• two twist 200 E swing gate operator
• Post and gate leaf fitting
• Control unit DST-A 24 in housing (IP65), Dimensions: 250 × 175 × 75 mm
• SOMup4 radio receiver (FM 868.95 MHz SOMloq2, 40 radio memory positions), pluggable
• Slot for Memo memory extension (450 radio commands)
• Pearl Vibe 4-command handheld transmitter (# 4019V000)
• Transmitters can be programmed and deleted and information on the radio receiver.

• Weight (kg) : 11.7504
• EAN : 4015862918321
• Goods number : 8479 89 97
• Radio frequency 1 : 868,950 MHz SOMloq2
• Number of radio memory positions : 40
• Somloq compatible : nein
• SOMloq2 compatible : ja
• IP code : IP 44
• Protection class : I
• Standby : 2,90 W
• Temperature min. : - 30 °C
• Temperature max. : 70 °C
• max. pulling force : 2000 N
• Rated pulling force : 660 N
• Operating time : ED 15% S3
• max. gate weight : 300 kg
• max. gate opening angle : 120 °
• max. gate inclination : 10,0 %

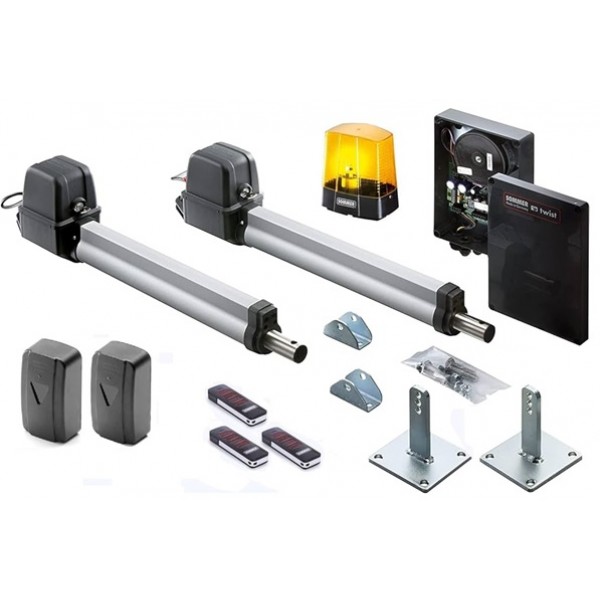

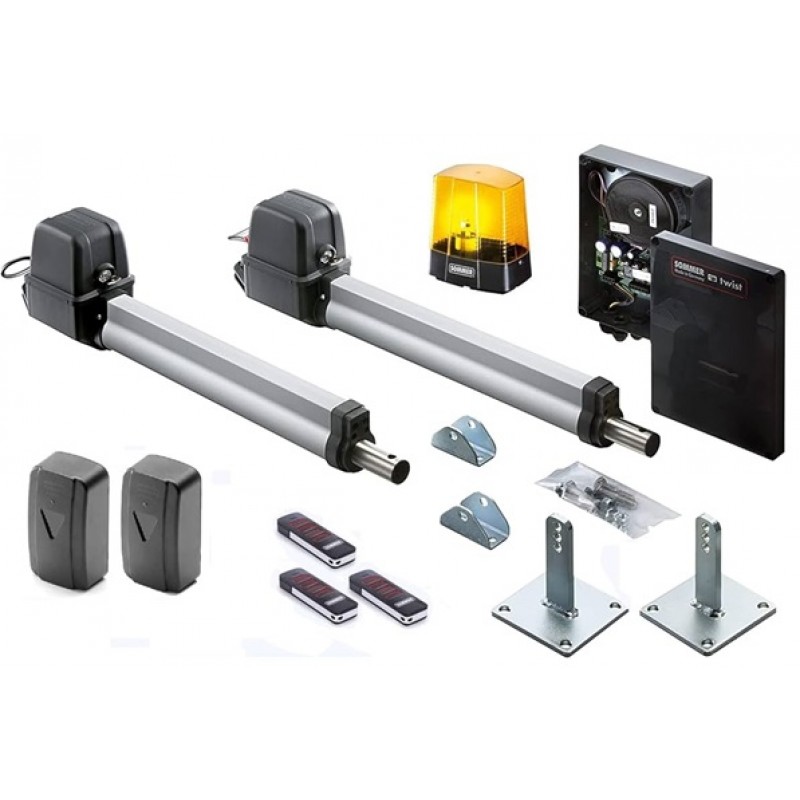

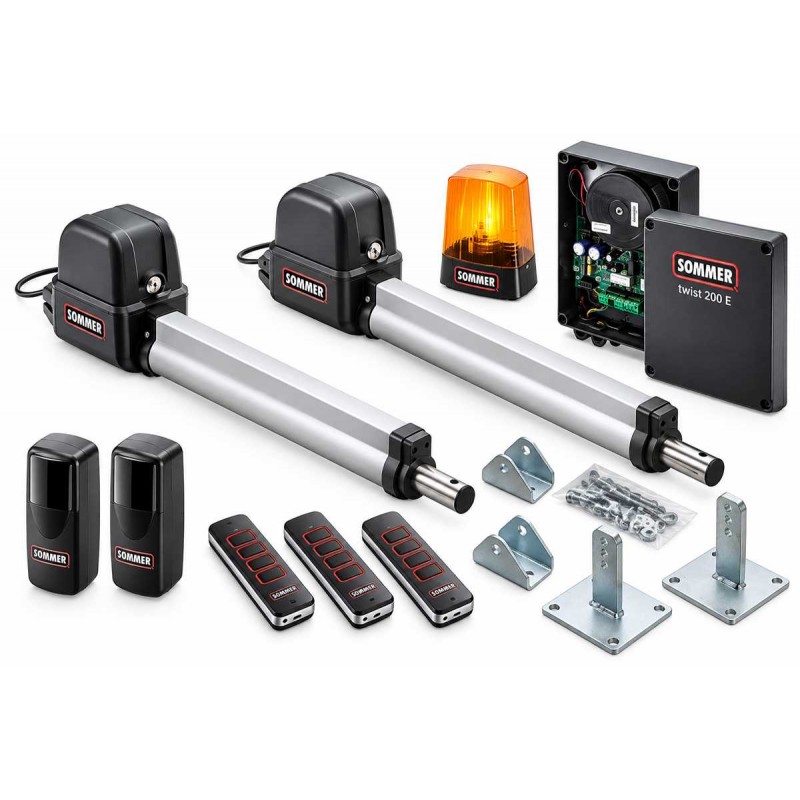

SOMMER TWIST 200 Included:

• 2 x twist 200 E swing gate operator.
• 1 x Control unit in housing.
• 1 x Post and hinged double door fittings.
• 1 x Radio receiver SOMup4 FM 868.95 MHz.
• 2 x 4-command handheld transmitter Pearl Vibe.
• 1 x Blinker light.
• 2 x Fixing Bracket.
